转个自己的贴-一块160*80不带控制器的液晶屏

垃圾猪

一块160*80不带控制器的液晶屏

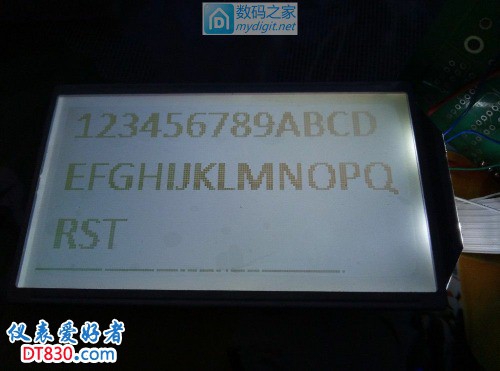

我的效果，直接用ram创建一个160*80的显存区，1k一下ram就别玩了，没有控制器，只有驱动器，
5块钱还要什么飞机呢！
程序：

1. #include "STC15F2K60S2.H"

2. #include "intrins.h"

3. typedef unsigned char uchar;

4. typedef unsigned int uint;

5.

6. //显示刷新帧速25ms，40帧，微闪烁，过快导致对比度下降

7. #define LCD_DATA P2

8. sbit  LCD_RST = P4^4;                // 重启    L

9. sbit  LCD_XCS = P3^2;                //命令选择L

10. sbit  LCD_SID = P3^3;                //命令串行数据

11. sbit  LCD_XCLK = P3^4;                //命令时钟

12. sbit  LCD_DISP = P3^5;                //L关闭显示

13. sbit  LCD_CP = P4^2;                    //数据移位时钟

14. sbit  LCD_LP = P4^1;                    //数据锁存，com数据移位

15. sbit  LCD_M = P3^7;                            //LCD输出交流信号

16. sbit  LCD_FLM = P3^6;                    //帧起始

17. sbit    LCD_D1    = P2^0;                        //数据输入

18. sbit    LCD_D2    = P2^1;

19. sbit    LCD_D3    = P2^2;

20. sbit    LCD_D4    = P2^3;

21.

22.

23. /***********************阴码，顺向（高位在前）逐行式************************************/

24. uchar xdata LCD_RAM[80][20]={

25. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

26. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

27. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

28. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

29. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

30. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

31. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

32. {0x00,0x70,0x3E,0x07,0xC0,0x3C,0x3F,0x81,0xFB,0xFF,0x1F,0x83,0xE0,0x1C,0x0F,0xE0,0x3F,0x1F,0xE0,0x00},

33. {0x00,0xF0,0x67,0x8C,0xE0,0x3C,0x30,0x07,0x00,0x07,0x39,0xC7,0x30,0x3C,0x0E,0x70,0x71,0x9C,0x70,0x00},

34. {0x01,0xF0,0x03,0x80,0x70,0x7C,0x30,0x06,0x00,0x06,0x30,0xCE,0x38,0x3E,0x0E,0x38,0xE0,0x1C,0x38,0x00},

35. {0x03,0x30,0x03,0x80,0x70,0x7C,0x30,0x0E,0x00,0x0E,0x30,0xCE,0x18,0x3E,0x0E,0x39,0xC0,0x1C,0x1C,0x00},

36. {0x00,0x30,0x03,0x80,0x70,0xFC,0x30,0x0C,0x00,0x0C,0x39,0xCE,0x18,0x76,0x0E,0x39,0xC0,0x1C,0x1C,0x00},

37. {0x00,0x30,0x03,0x80,0xE1,0xDC,0x3F,0x0F,0xF0,0x1C,0x1F,0x8E,0x1C,0x77,0x0E,0x71,0xC0,0x1C,0x1C,0x00},

38. {0x00,0x30,0x07,0x07,0xC1,0x9C,0x03,0x8E,0x38,0x1C,0x0F,0x0E,0x3C,0xE7,0x0F,0xF1,0xC0,0x1C,0x1C,0x00},

39. {0x00,0x30,0x0E,0x00,0xF3,0x9C,0x01,0xCC,0x38,0x38,0x3B,0xC3,0xF8,0xE3,0x8E,0x39,0xC0,0x1C,0x1C,0x00},

40. {0x00,0x30,0x0E,0x00,0x73,0x1C,0x01,0xCC,0x18,0x38,0x70,0xE0,0x18,0xE3,0x8E,0x19,0xC0,0x1C,0x1C,0x00},

41. {0x00,0x30,0x1C,0x00,0x37,0xFF,0x01,0xCE,0x18,0x70,0x70,0xE0,0x39,0xFF,0x8E,0x1D,0xC0,0x1C,0x18,0x00},

42. {0x00,0x30,0x38,0x00,0x70,0x1C,0x01,0xCE,0x38,0x70,0x70,0xE0,0x39,0xC1,0xCE,0x18,0xE0,0x1C,0x38,0x00},

43. {0x00,0x30,0x70,0x18,0x70,0x1C,0x63,0x86,0x30,0x60,0x31,0xC0,0x71,0x81,0xCE,0x38,0xF1,0x9C,0x70,0x00},

44. {0x03,0xFE,0xFF,0xCF,0xC0,0x1C,0x7F,0x03,0xE0,0xE0,0x1F,0x8F,0xC3,0x80,0xCF,0xF0,0x3F,0x1F,0xC0,0x00},

45. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

46. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

47. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

48. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

49. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

50. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

51. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

52. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

53. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

54. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

55. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

56. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

57. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

58. {0x03,0xFC,0x7F,0x87,0xF0,0xC0,0xC7,0x0E,0x70,0xEE,0x07,0x80,0x78,0xE0,0xC0,0xFC,0x1F,0xE0,0x7E,0x00},

59. {0x03,0x80,0x60,0x0E,0x18,0xC0,0xC7,0x0E,0x71,0xCE,0x07,0xC0,0xF8,0xF0,0xC3,0x87,0x1C,0x71,0xE3,0x80},

60. {0x03,0x80,0x60,0x1C,0x00,0xC0,0xC7,0x0E,0x73,0x8E,0x07,0xC0,0xF8,0xF0,0xC3,0x03,0x1C,0x31,0x81,0xC0},

61. {0x03,0x80,0x60,0x38,0x00,0xC0,0xC7,0x0E,0x77,0x0E,0x07,0xE0,0xF8,0xF8,0xC7,0x03,0x9C,0x33,0x81,0xC0},

62. {0x03,0x80,0x60,0x30,0x00,0xC0,0xC7,0x0E,0x7E,0x0E,0x07,0xE1,0xF8,0xD8,0xC6,0x03,0x9C,0x33,0x80,0xC0},

63. {0x03,0x80,0x60,0x30,0x00,0xC0,0xC7,0x0E,0x7C,0x0E,0x07,0x61,0xB8,0xDC,0xC6,0x01,0x9C,0x73,0x00,0xC0},

64. {0x03,0xFC,0x7F,0x31,0xF8,0xFF,0xC7,0x0E,0x7C,0x0E,0x07,0x73,0xB8,0xCE,0xC6,0x01,0x9C,0x73,0x00,0xC0},

65. {0x03,0x80,0x60,0x30,0x38,0xC0,0xC7,0x0E,0x7E,0x0E,0x07,0x73,0x38,0xCE,0xC6,0x01,0x9F,0xC3,0x00,0xC0},

66. {0x03,0x80,0x60,0x30,0x38,0xC0,0xC7,0x0E,0x77,0x0E,0x07,0x3F,0x38,0xC7,0xC6,0x03,0x9C,0x03,0x80,0xC0},

67. {0x03,0x80,0x60,0x38,0x38,0xC0,0xC7,0x0E,0x73,0x8E,0x07,0x3F,0x38,0xC7,0xC7,0x03,0x9C,0x03,0x81,0xC0},

68. {0x03,0x80,0x60,0x18,0x38,0xC0,0xC7,0x0C,0x73,0x8E,0x07,0x1E,0x38,0xC3,0xC7,0x03,0x1C,0x01,0x81,0x80},

69. {0x03,0x80,0x60,0x1E,0x38,0xC0,0xC7,0x4C,0x71,0xCE,0x07,0x1E,0x38,0xC1,0xC3,0x87,0x1C,0x01,0xC3,0x80},

70. {0x03,0xFE,0x60,0x07,0xF0,0xC0,0xC7,0x78,0x70,0xEF,0xF7,0x1C,0x38,0xC1,0xC0,0xFC,0x1C,0x00,0x7F,0xE0},

71. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0},

72. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30},

73. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

74. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

75. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

76. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

77. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

78. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

79. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

80. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

81. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

82. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

83. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

84. {0x03,0xFC,0x1F,0x3F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

85. {0x03,0x8E,0x71,0x83,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

86. {0x03,0x8E,0x70,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

87. {0x03,0x86,0x70,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

88. {0x03,0x8E,0x70,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

89. {0x03,0x8E,0x3C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

90. {0x03,0xF8,0x1F,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

91. {0x03,0x9C,0x07,0x83,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

92. {0x03,0x8C,0x01,0x83,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

93. {0x03,0x8E,0x01,0xC3,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

94. {0x03,0x8E,0x01,0x83,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

95. {0x03,0x87,0x63,0x83,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

96. {0x03,0x87,0x3F,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

97. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

98. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

99. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

100. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

101. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

102. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

103. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

104. {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}

105. };

106.

107. void LCD_Init(void)                            //为了保证屏幕亮度，必须刷新较慢暂定50hz

108. {

109. uint i=0,x=0,y=0;

110.

111.     //LCD_CP=1;

112.     LCD_LP=1;

113.     LCD_FLM=1;

114.

115.     LCD_LP=0;

116.     LCD_FLM=0;

117.     for (x=80;x>0;x--)

118.         {

119.         LCD_LP=1;

120.         LCD_LP=0;

121.         for (i=0;i<20;i++)

122.             {

123.

124.             y=LCD_RAM[x];

125.

126.

127.             LCD_CP=1;

128.             LCD_DATA=y>>4;

129.

130.             LCD_CP=0;

131.                 LCD_CP=1;

132.             LCD_DATA=y;

133.

134.             LCD_CP=0;

135.             }

136.

137.         }LCD_M=~LCD_M;

138. }

139. delay_us()

140. {_nop_();

141.     _nop_();

142.     _nop_();

143.     _nop_();

144.     _nop_();

145.     _nop_();

146.     _nop_();

147.     _nop_();

148.     _nop_();

149.     _nop_();

150.     _nop_();

151.     _nop_();

152. }

153. void LCD_CMD (uchar command)                    //发送命令时，必须延时足够（先设定2us）才能正确配置命令

154. {    uchar i=0;

155.     LCD_XCS=0;

156.     delay_us();

157.     LCD_XCLK=1;

158.     delay_us();

159.     for (i=0;i<8;i++)

160.         {

161.         command<<=1;

162.         LCD_SID=CY;

163.             delay_us();

164.         LCD_XCLK=0;

165.             delay_us();

166.         LCD_XCLK=1;

167.             delay_us();                        //上升沿读取数据

168.

169.         }

170. //    LCD_XCLK=0;

171. //    LCD_SID=1;

172.     LCD_XCS=1;

173.         delay_us();                                //关闭命令控制

174. }

175.

176. void main()

177. { unsigned char i, j;

178.

179.

180.     LCD_RST=0;

181.     i = 59;

182.     j = 90;

183.     do

184.     {

185.         while (--j);

186.     } while (--i);

187.     LCD_RST=1;

188.     LCD_CMD(0x08);                        //00000000bD3 select frame direction.0:normal,1:reverse,bias 1/9

189.     LCD_CMD(0x27);                    //00101111bSelect internal power supply operating mode

190.

191.     LCD_CMD(0x46);                            //01000111bSelect internal resistor ratio(Rb/Ra) mode

192.     LCD_CMD(0x67);                                    //01100111bSet the LCD booster frequency

193.     LCD_CMD(0xf0);                                //11011010bSet the V0 output voltage  electronic volume register

194.     LCD_XCS=0;                                    //这三条必须有，不然升压不工作！或许是A,B两个版本的区别

195.     LCD_SID=1;

196.     LCD_XCLK=0;

197.

198.

199. //    LCD_DISP=0;

200. //    LCD_DISP=1;

201. //    LCD_XCS=0;

202. //    LCD_SID=0;

203. //    LCD_XCLK=0;

204.

205.     while (1)

206.         { LCD_Init();}

207. }

复制代码



垃圾猪

自己的帖子转过来，

43545

垃圾猪 发表于 2017-10-9 22:00
自己的帖子转过来，

转过来，就好好转嘛，单片机C代码，论坛发贴时有专门的代码按钮的。

勇闯沙滩

普通人用不上，看着就蒙。

光速飞行

勇闯沙滩 发表于 2017-12-6 08:19
普通人用不上，看着就蒙。

你身边到处都是，这些是简单的了，怎么用不上呢？

勇闯沙滩

光速飞行 发表于 2017-12-6 09:45
你身边到处都是，这些是简单的了，怎么用不上呢？

看那一大堆程序有点蒙，

光速飞行

勇闯沙滩 发表于 2017-12-6 13:39
看那一大堆程序有点蒙，

这是C语言，C语言很多地方都上。

xo304

这个屏点亮了

喜欢就好

虽然俺看不懂，屏亮了就是高手。
